Continuation of the last batch of No 982 planes
There are two reasons that I use the surface grinder a lot; the main one is for the precision and also for the nice textured finish. This usually means that I visit the surface grinder several times during the working of the plane as no matter how careful I handle the work pieces they seem to break out in a ‘workshop’ rash very quickly.
This picture here is the sides being ground true after the drilling and tapping. This also leaves the bottoms a true uniformed width and square.
Of course the time comes when the toe of the plane needs to be separated from the rear end. I can lose a lot of sleep here as mistakes are so easy. Any mistakes here will cost me dearly.
With the front and back ends of the bottom now separated each part is then milled to size and angle.

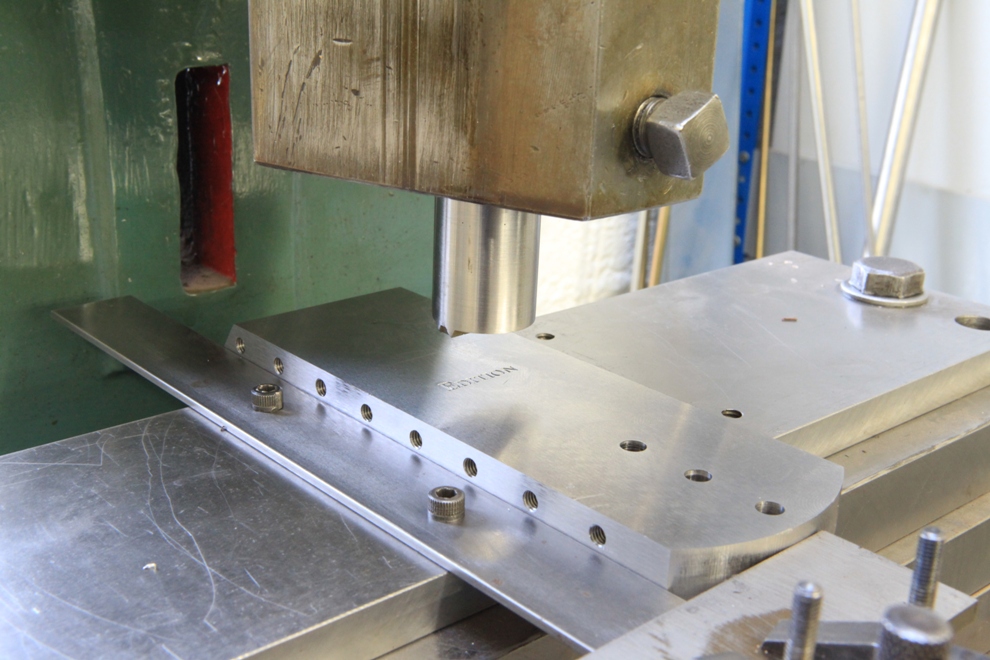

All my marks are stamped with my fly press which I couldn’t exist without. The No 982 plane is stamped with an edition and its number, the plane type is stamped on the front end of the bottom (just behind the bun). The HOLTEY logo is stamped on the inside of the right hand side of the plane.

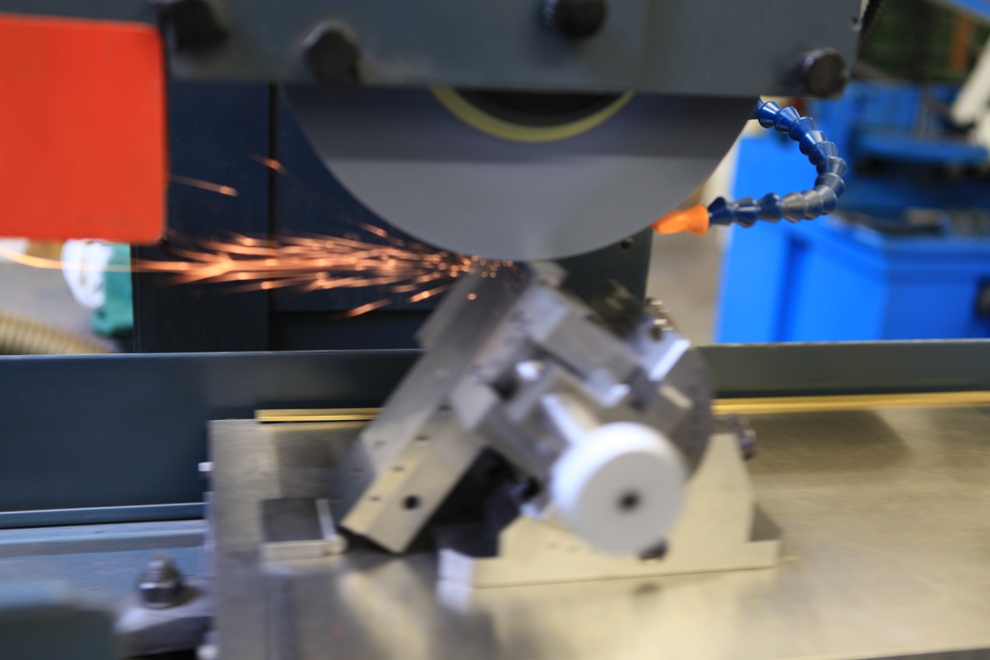

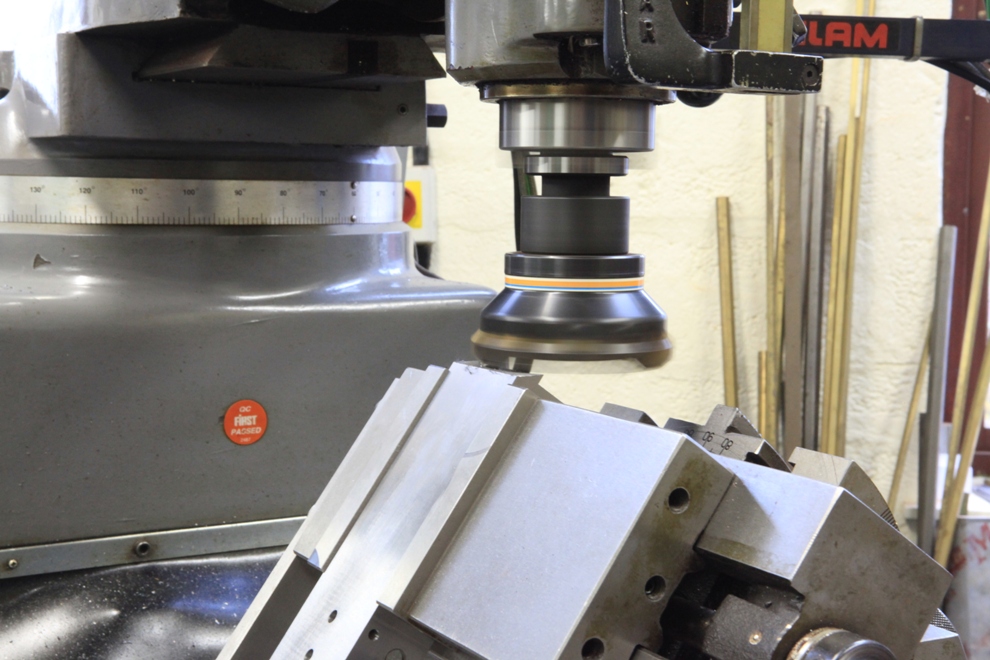

The 55 deg milled bed is surface ground maintaining the angle to precision. This picture may be a little blurred but I wanted to catch the sparks.

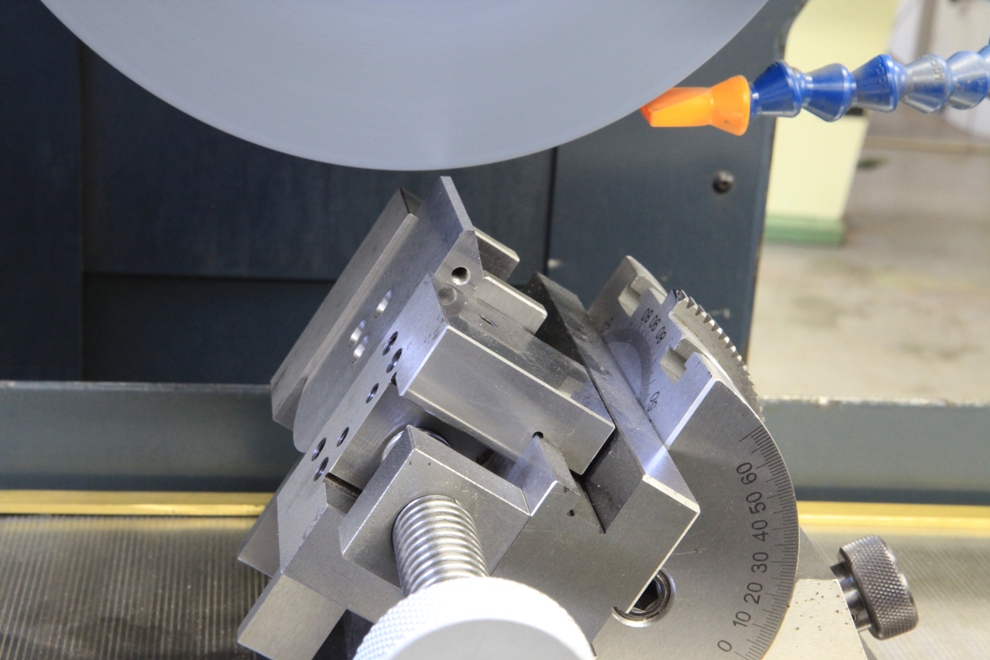

Now the front end. I use two angles here. The one being ground here is the critical one because this is going to be the mouth of the plane. This is in a similar tradition to some of the wooden planes and is much easier to regulate a small aperture as desired by some.

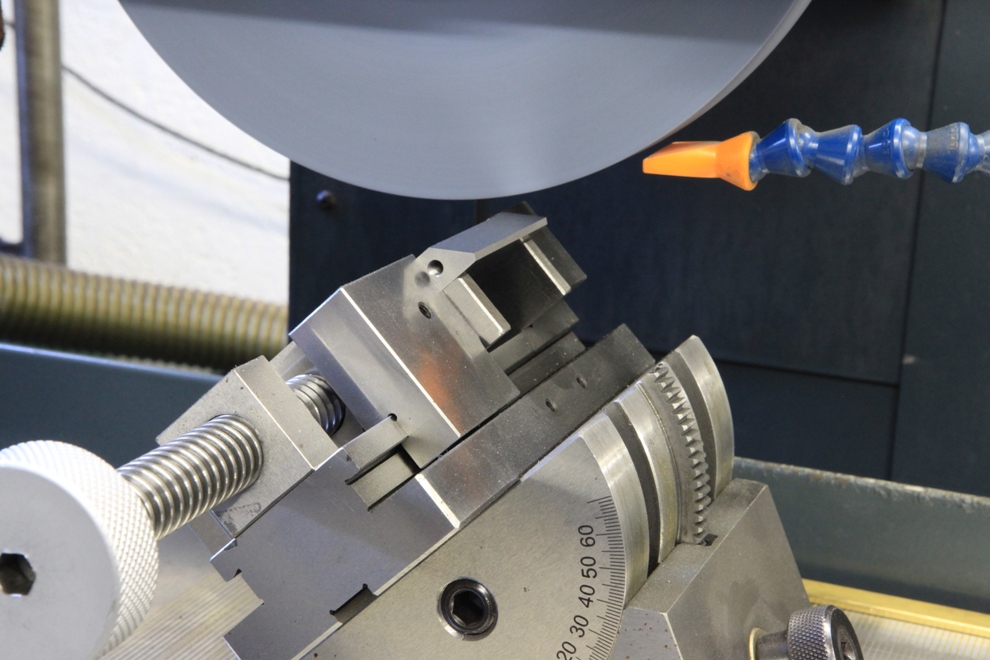

This angle here helps to provide a better means of escape for the shavings and access for cleaning. The grinding here is mainly cosmetic.

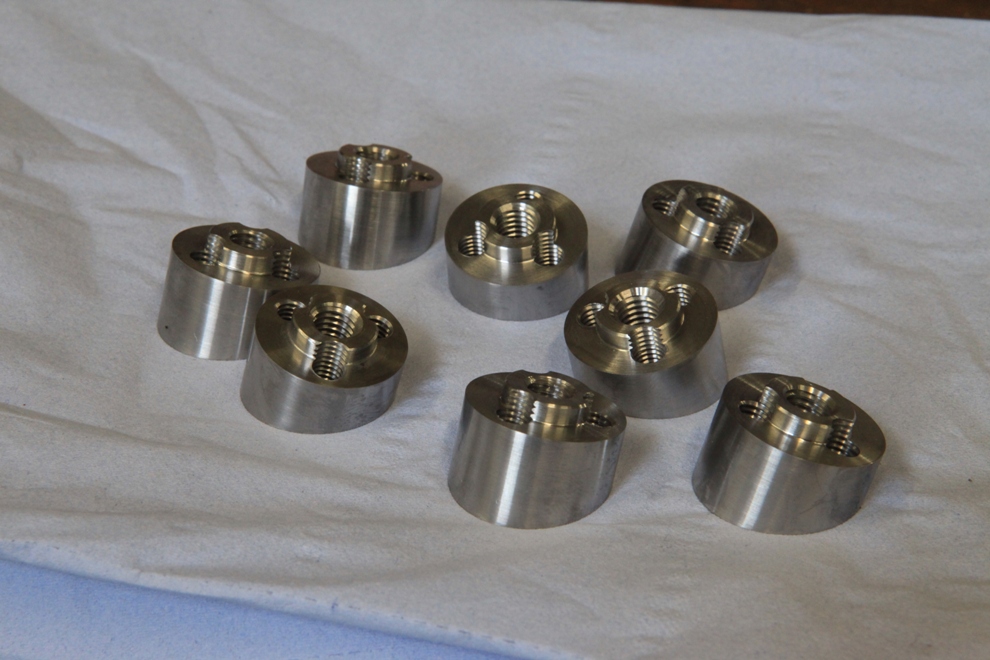

These are the front bun chairs and once the blanks have been cut and trimmed up true to uniformed size the central fixing hole is drilled whilst still in the lathe. They are then tapped with an 8 x 1.25mm thread; this is for the bun screw.

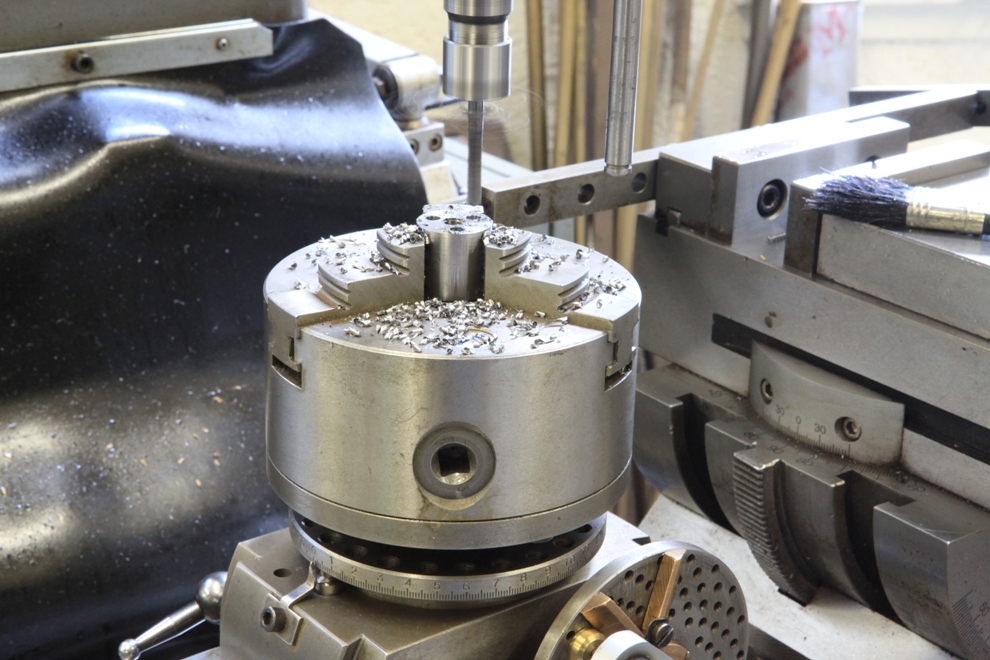

The 3 x 6mm fixings are drilled on a manual milling machine using an indexing head as shown.
With the three index holes now drilled I only need a tool change to tap these three holes whilst still in the chuck.
Now that all my fixing holes are complete it is back to the lathe to form a small spigot where the bun in engaged.

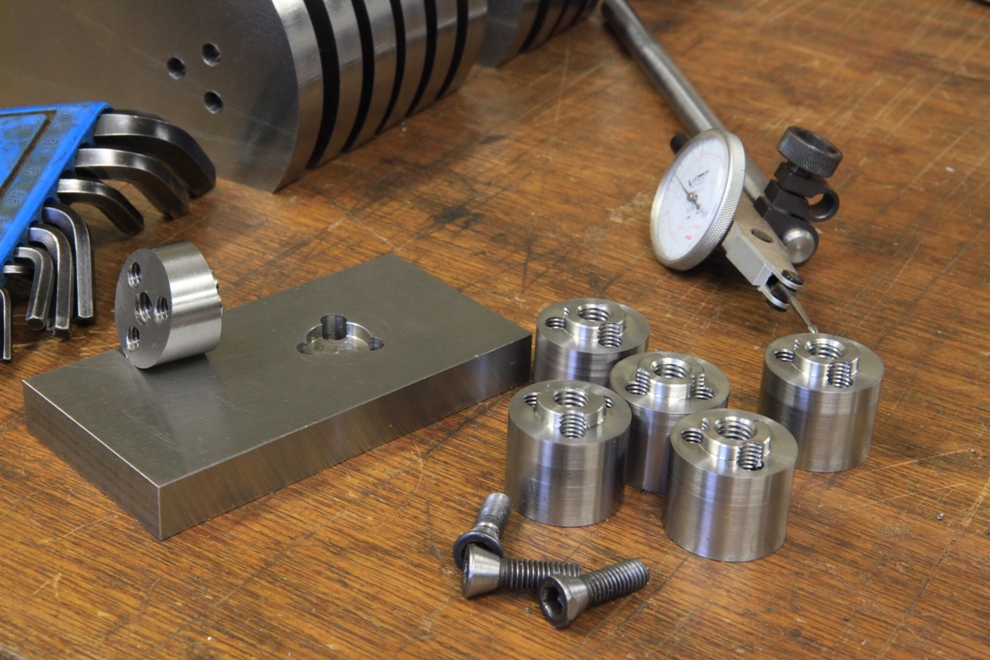

The last job on the chairs now is to finish the bottoms to the 15 deg offset to the front buns. A small fixture has been made for this purpose. The chairs are mounted with the three bolts.

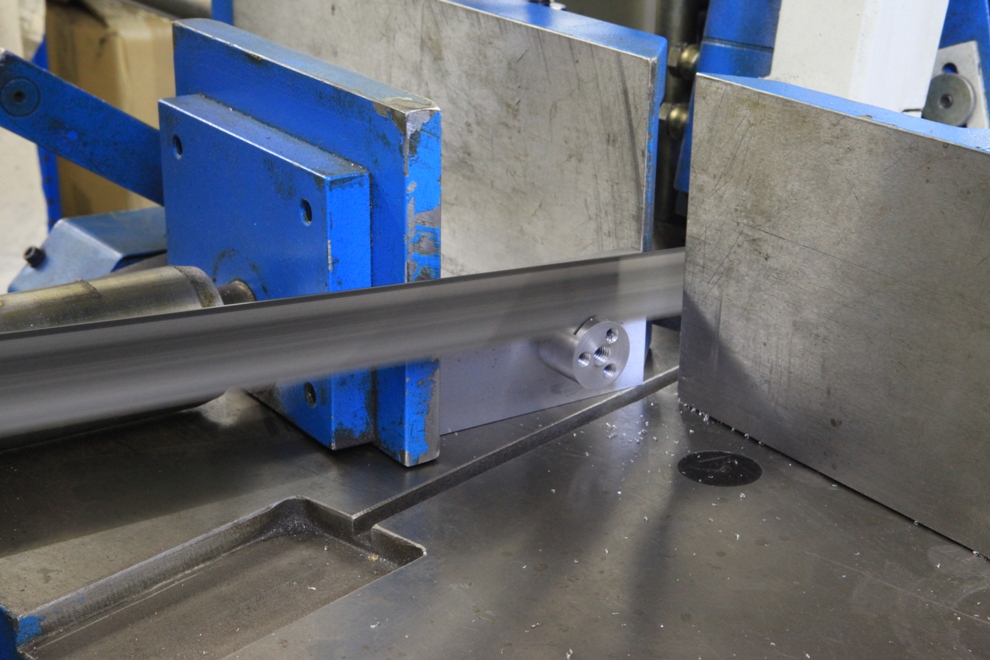

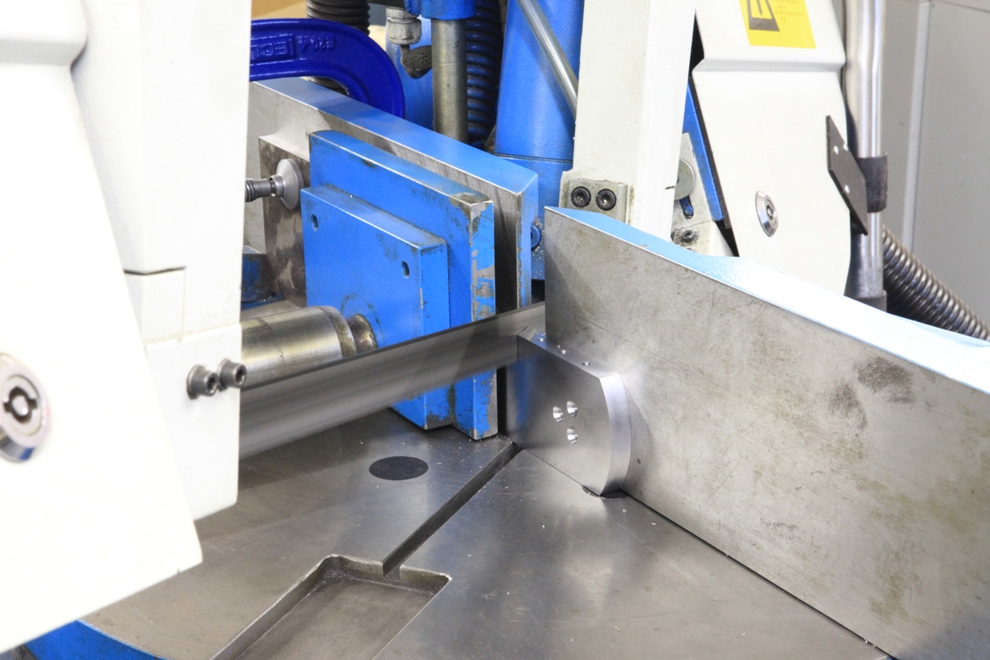

The chair is held in its fixture and secured on the saw for cutting

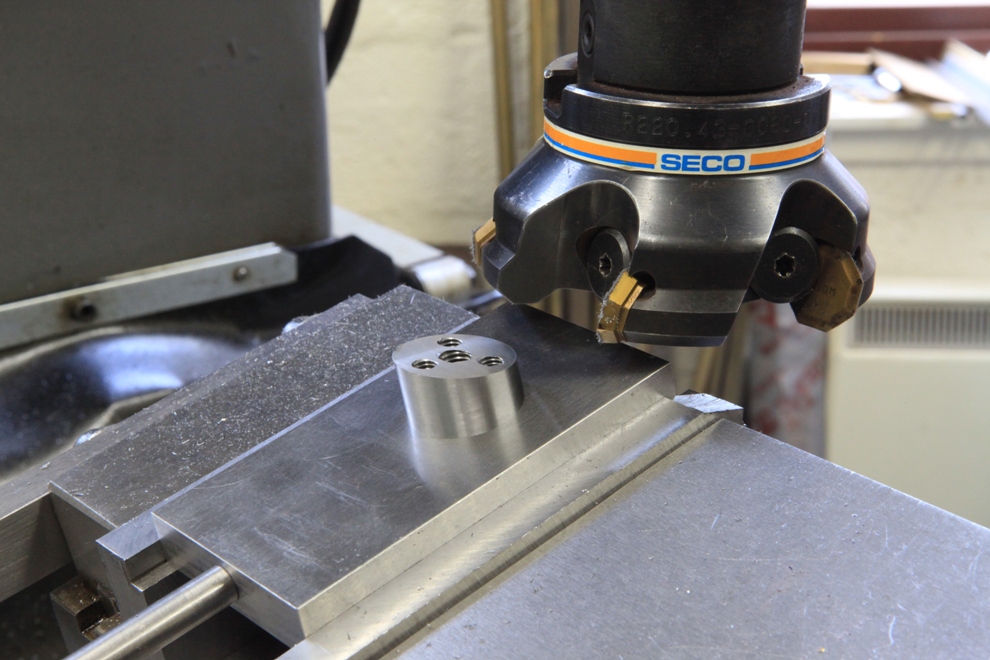

Whilst the chair is still attached to the fixture it is clamped onto the tilting milling vice for surfacing to the desired dimension.
What is a plane maker’s workshop?
When I first started making planes and was putting together a workshop with a very small budget, I had no idea what form the workshop was going to take – and I still don’t. I started with just a small Tom Senior milling machine, a 5” Raglan screw cutting lathe and a Fobco drill press. Looking back I can see that not only have I come a long way in improving my workshop but also in build and quality of my work. From the start I have always striven to make each plane better than the last. Although I have already covered the subject of my No 982 smoother plane elsewhere on the blog I thought that since I am currently working on the last batch (this plane is limited to 16 of each type, with and without brass cones) I would take the opportunity to described my workshop and some of the machines in it.
Jaespa W220DG Saw
In the beginning I was cutting everything by hand and didn’t even have a wood machine. It was a quantum leap just to get an ordinary band saw. After buying a pull down saw I found it unsuitable as it meant I had to be in attendance full time with the machine to pull down on the handle. I replaced it very rapidly with this Jaespa bow saw. It is the best friend any workshop could have. Very little gets passed this machine.
Here I am taking advantage of the 10 x 10” capacity to reduce the width of a pre-cut bar from my stock for the No 982 bottoms. This machine has a gravity feed controlled by a hydraulic valve which means that in the case of heavy workloads I don’t need to stand with the machine. This allows me to run more than one machine at a time (on occasions several machines).
In the foreground is my workhorse. A Bridgeport Series II Interact 2, which must be 20 years old and like me, is showing its age. This was one of the early CNC mills controlled by an Heidenhain TNC 151 (by today’s standard it is an abacus). A replacement for this machine would cost a very nice new car.
As you will see throughout all my blogs I use it for many operations and here I am using it to mill and de-scale this hot rolled bar which is to be used for the No 982 bottoms.
This machine is my only experience in programming and it has taken me a long time to reach some proficiency. I wouldn’t want to replace this machine with a VMC but I would like a nice open style bed mill with an Heidenhain control (in my dreams).
Although my current machine performs many tasks it is still limited (in scope but not in work quality) and I sometimes find things easier to do on my manual mill. I have also become very dependent on DROs and no longer trust vernier readings.
It is such a wide range of work that this CNC mill does I no longer want to do my work without it. As much as I might want a CNC lathe I would sooner update my current mill first.
Jones and Shipman 1430 semi automatic surface grinder
Up until 9 years ago I outsourced the grinding for my blades and it was my experience that outsourcing is fraught with problems. I was extremely fortunate to find a machine of this quality which allowed me to do the grinding myself and enabling me to keep everything in house. The machine was originally made in the 1960’s but had just been rebuilt by Andmar (who work very closely with Jones and Shipman to achieve the good build quality). This machine has a good 2’ x 1’ chuck and it has proved very useful for much more than just blades. I have also become very dependent on it for tool making, as I make all my own tools and work holding jigs. In short, this machine has improved the standard of accuracy to everything that is made in my workshop.
All the bottoms and sides of my No 98 series planes are ground on all sides and again after assembly for the final finish.
As I am currently working on a small batch of No 982 14 1/2″ panel planes I thought I would show this picture of all the component parts of the smoother. Most of the parts are going to be the same.
This picture excludes taper pins, handle, lever cap, screw and adjuster.
There will be more pictures as I work through the project.
I have just found this blog entry for No 982 smoother that I forgot to finish. As it is very similar to the blog entry for the No 982 panel plane 14 1/2″ I have already done this week I thought I would just publish the pictures with no comments.

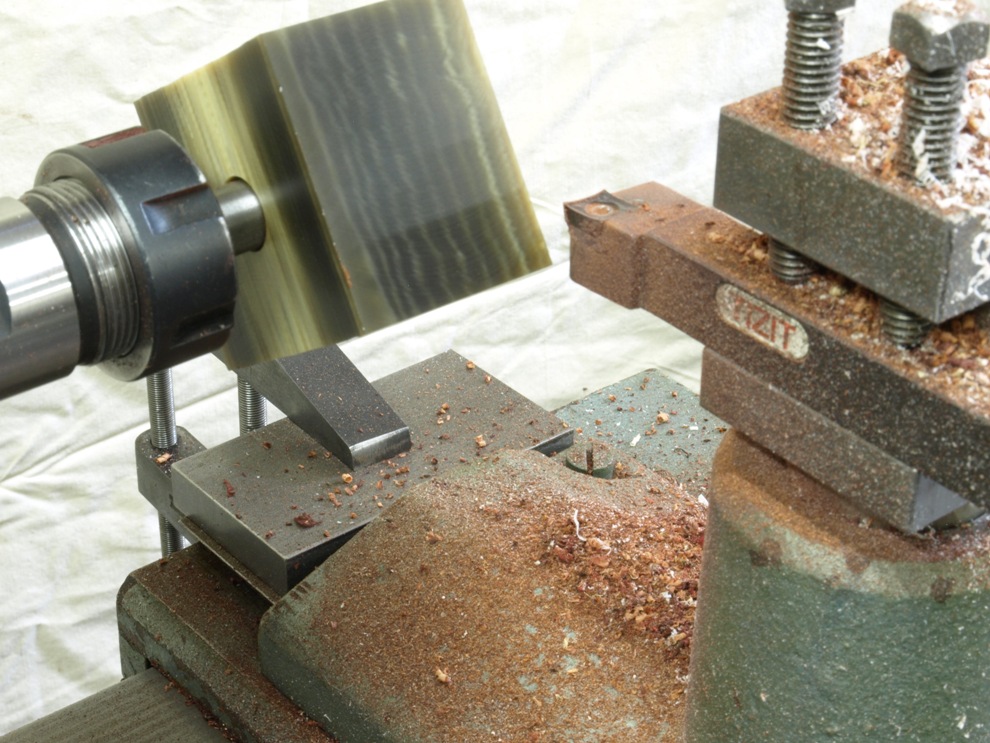

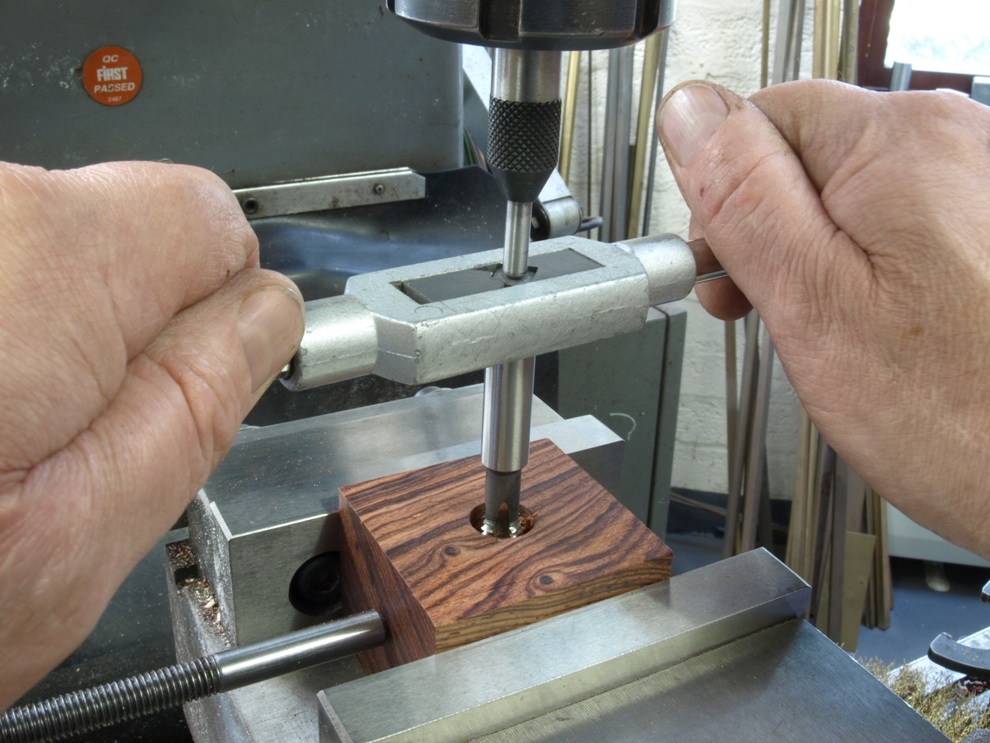

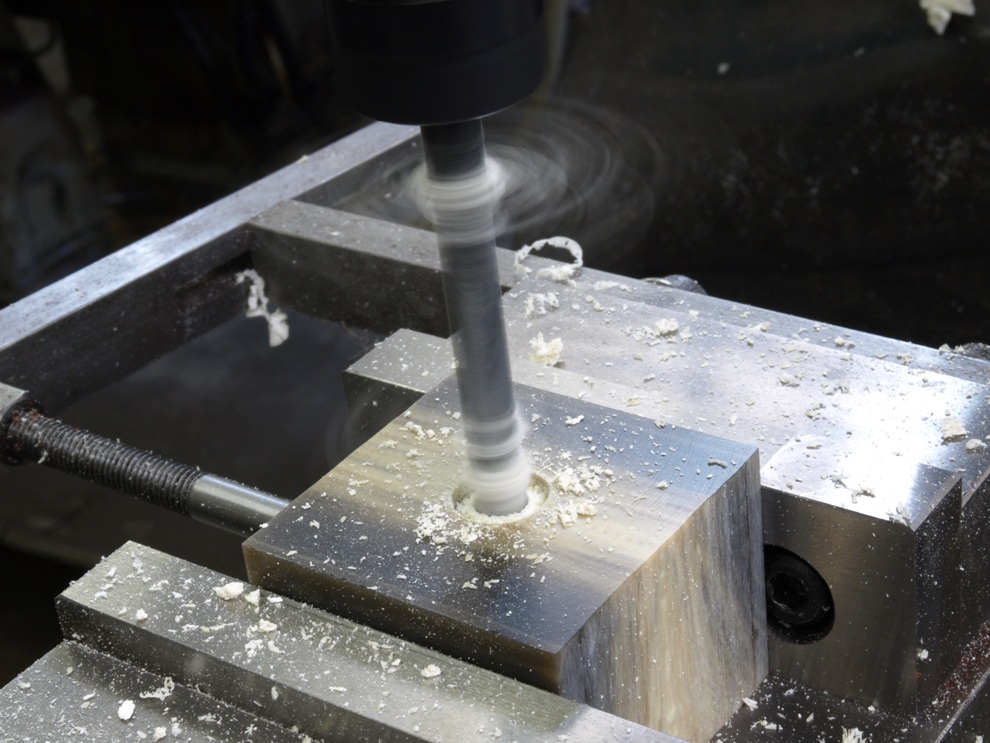

Just a few more pictures of buns before I move on to the next subject. As you see I can work both the rosewood and the polymer side by side.
Pictures only, no text needed.
A few more pictures to conclude the subject of polymer. Feel free to comment on whether it is worth it when you have seen the finished product.
Hopefully this plane will be on exhibition at the WIA conference next month with The Best Things.

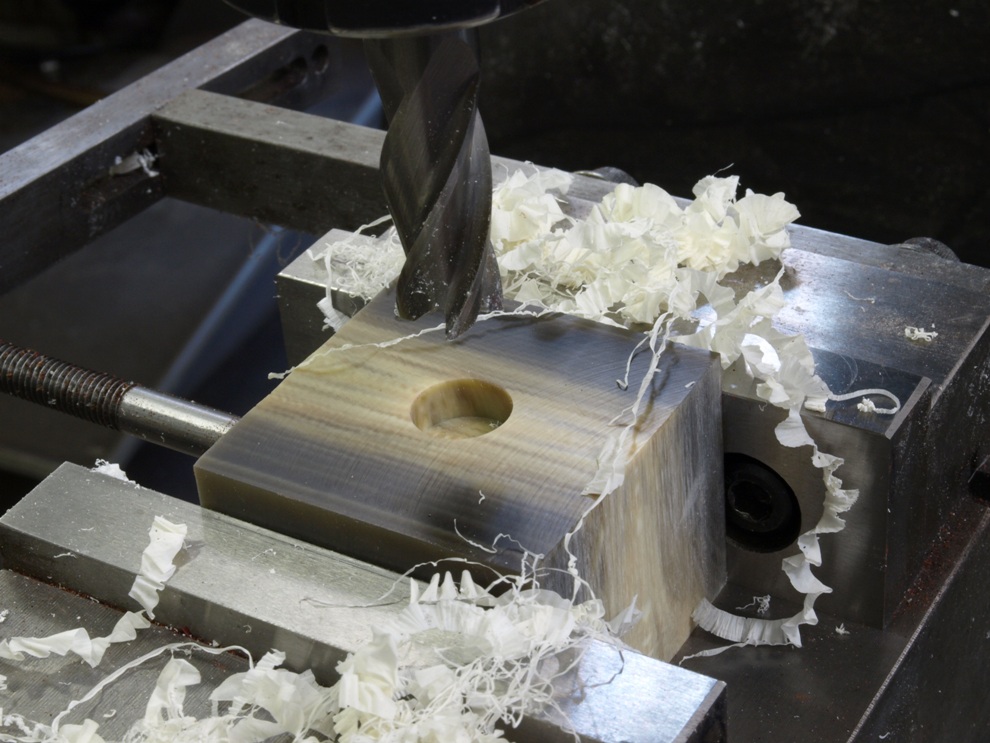

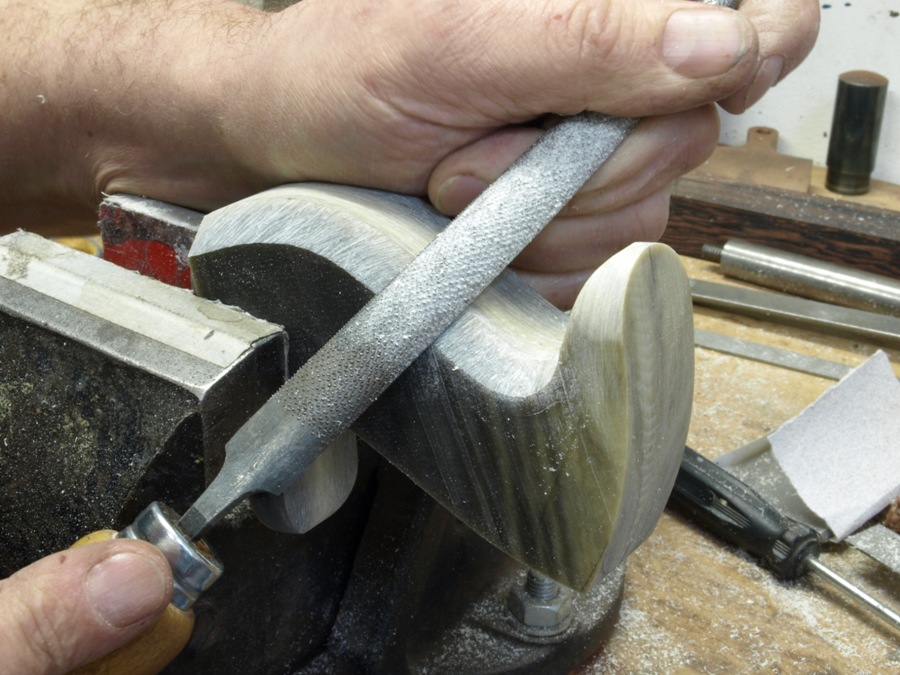

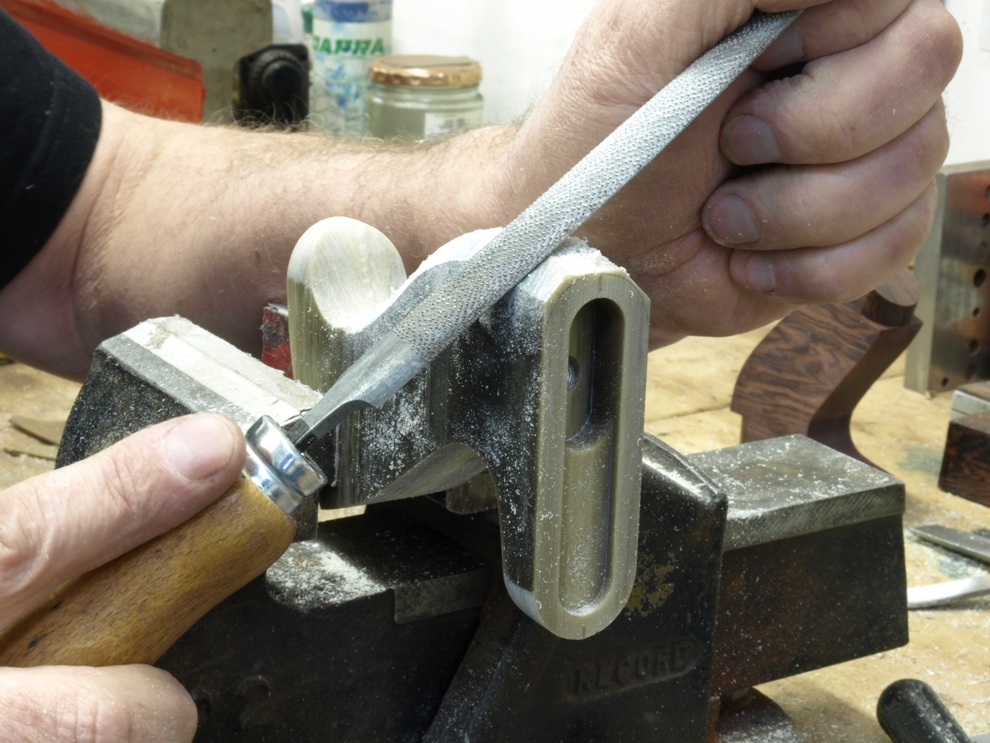

As you can see the polymer is worked in the same way as wood and the shaping is all done by hand.
Another view showing the fixing recess.
No 982 smoothing plane in the making – 7
Just a few pictures of the wip of the adjuster mechanism for the No 982. I seem to miss a lot of photo opportunities but I will use the few I have got.
Pictures showing some of the milling operations for the main adjuster body. The making of this component also includes some lathe work which is not shown.
