From the Workshop

October 24, 2011

Window to my workshop 57

Showing the continuing work to this non-adjuster blade.


Work on the blades recommences now that they are back from hardening.

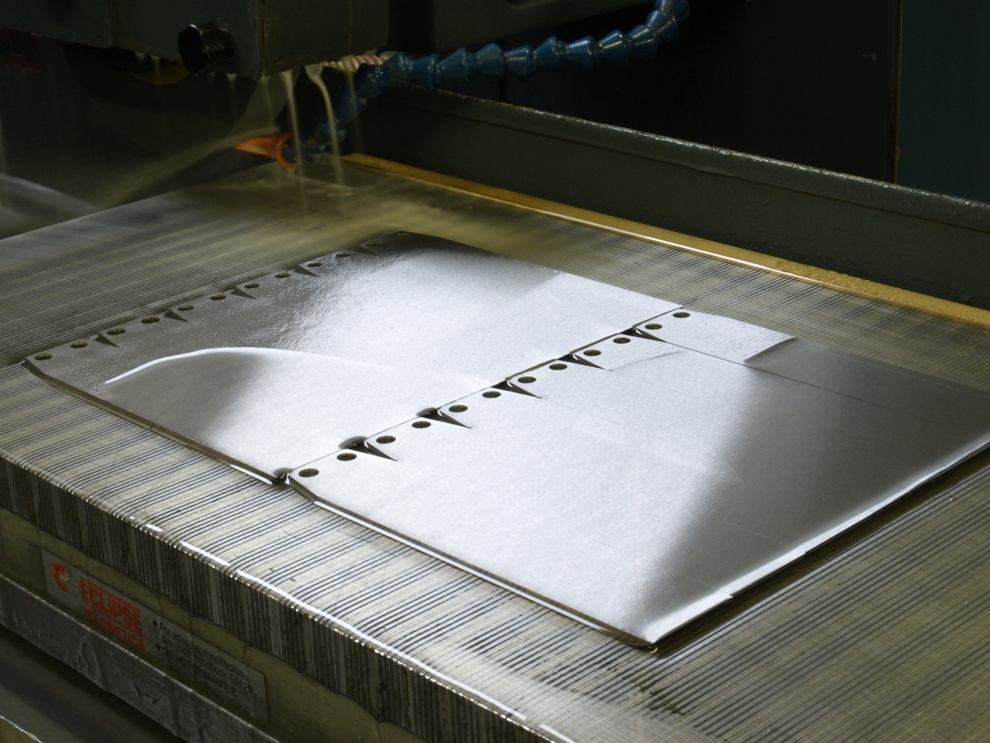

This picture shows one of the many grinding operations.

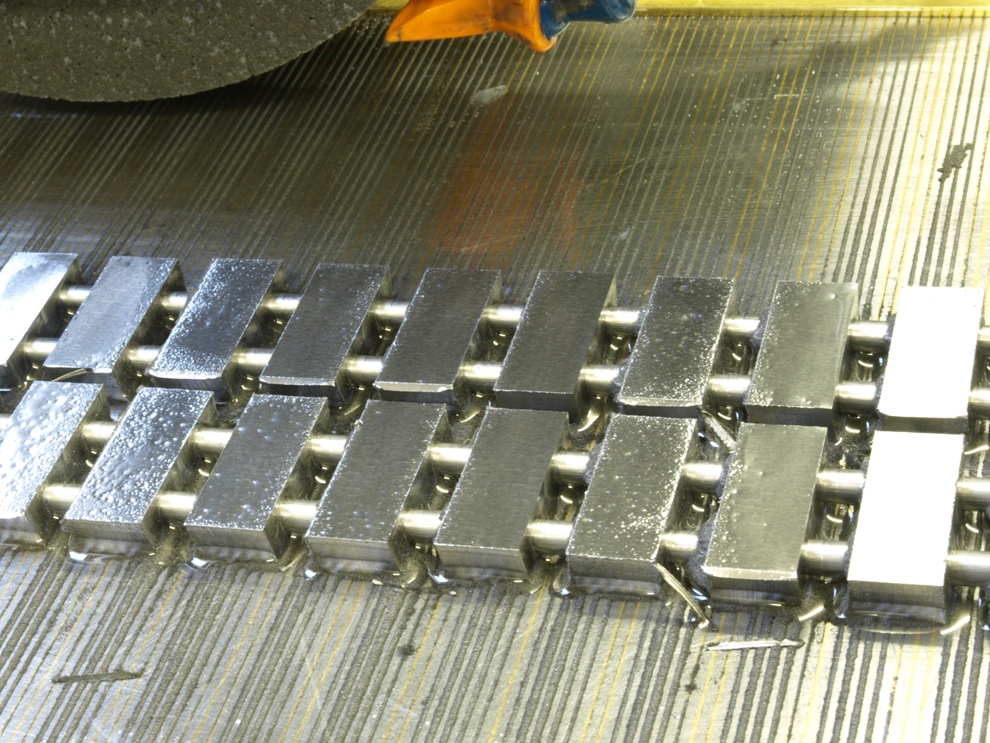

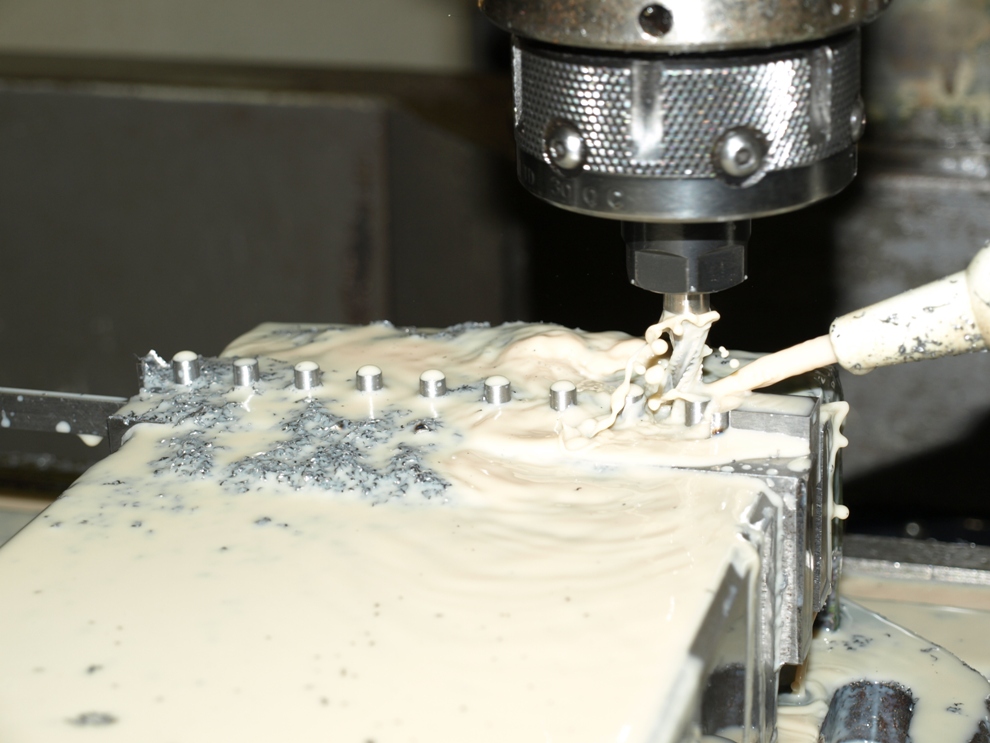

Even the snecks have to be ground on one surface before they are assembled.
(more…)

October 19, 2011

Window to my workshop 56

Filed under: No 10 smoother/mitre,Window to my workshop — Tags: , , , — admin @ 4:21 pm

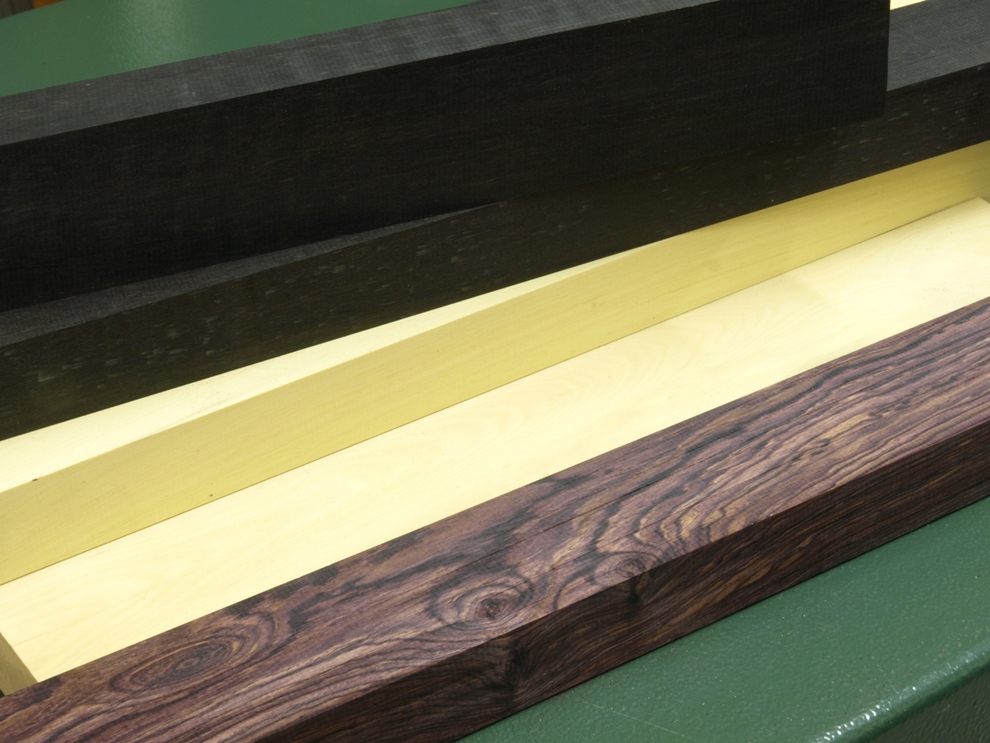

Some of the woods that I intend to use in the No 10. Although it doesn’t look at its best at this stage I am putting the picture up to satisfy an enquiry.  There is ebony, box and rosewood.

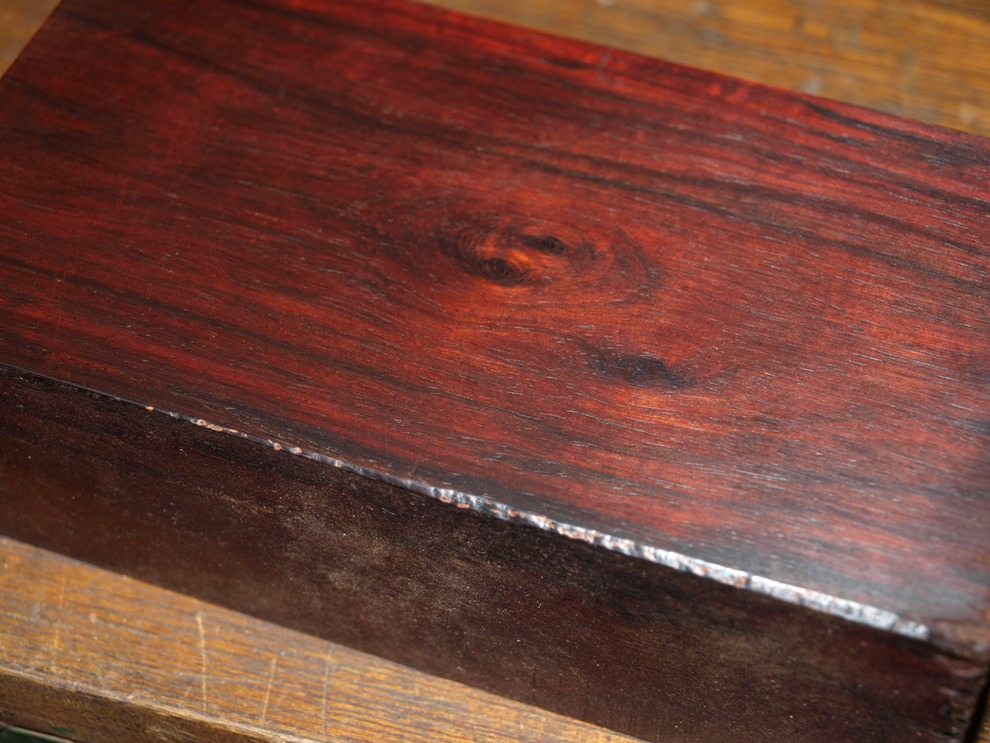

This wood is very,  very special.  It is Pterocarpus santalinus.  As it comes at a premium it will only be appreciated by those who are familiar with this wood.


I think I have been here before, though in a different application.
(more…)

October 17, 2011

Window to my workshop 55

No 10 smoother/mitre

A very patient customer asked me to make a small mitre plane. He wanted a 11/4” wide blade to be bedded at 25 deg and bevel up with a short body. No adjuster was required.

I would classify this plane as a smoother/mitre. The small mitre plane has always seemed to be surprisingly scarce for its usefulness. Having got my simple sketch approved the first batch is now well on the way (the sketch can be seen on the website here http://www.holteyplanes.com/).

It is a combined stainless steel bottom with naval brass dovetailed sides and brass lever cap and thumb screw. The blade is in my A2 original specification and has a top sneck. The length of the plane is 43/4“.

Despite its apparent austerity there will be no lacking in specification and quality. The designation will be No.10. Delivery will be end of November 2011.

What better place to start than the blades.  Here are the A2 blanks being drilled and shaped.  These are now away being heat treated (the only work to be done out of house).





Brass sides have been cut from sheet and trued up into rectangular blanks.
(more…)
