From the Workshop

February 13, 2011

Window to my workshop 50

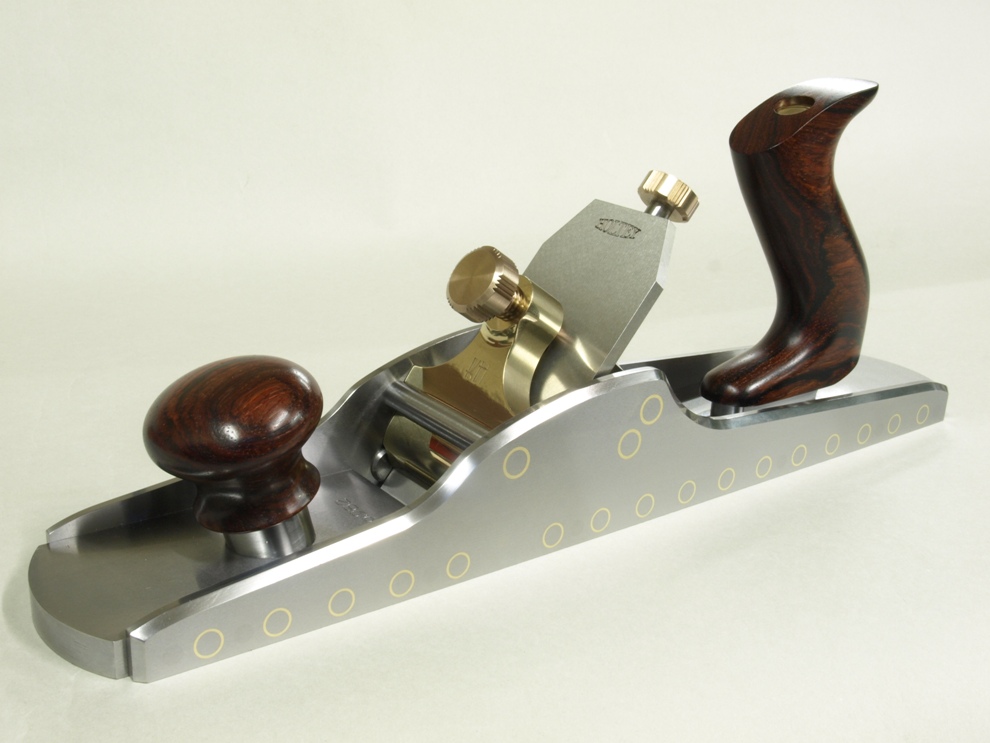

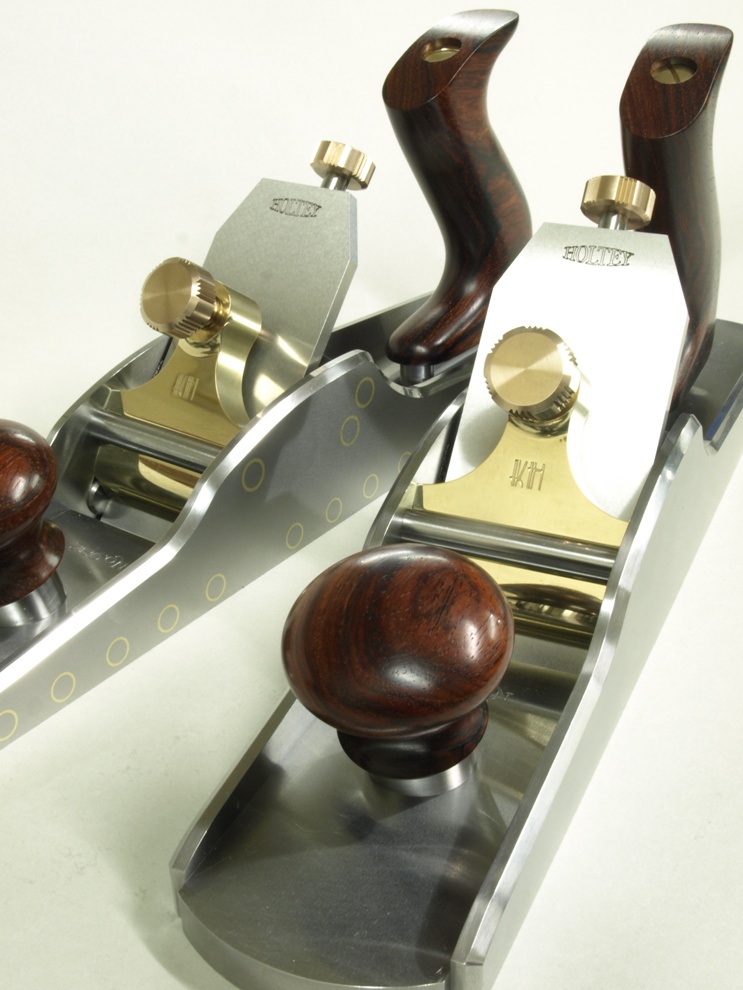

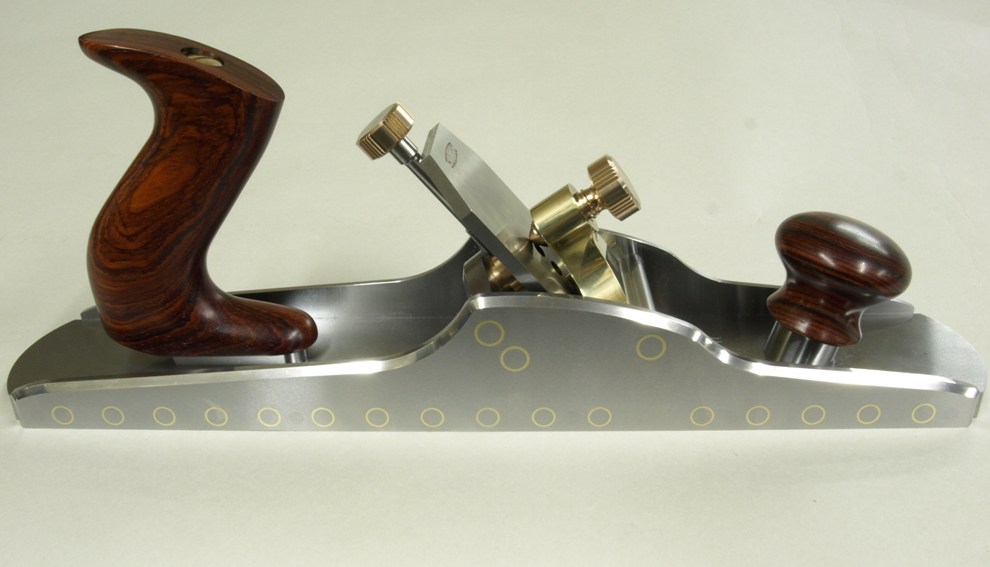

Some pictures of the completed No 982 panel planes (14 1/2″).  I made a limited edition of 8 of these planes, a few were made with the brass cones.




(more…)

December 26, 2010

Window to my workshop 48



Now that the No 982 lever caps are 99% complete I shall move on.



The beginning.  Cutting up bottoms and sides from hot rolled black mild steel.  This is a very malleable material with no stresses.
(more…)

November 21, 2010

Window to my workshop 47

After the completion of the No 982 smoothing planes it was not long before I was pressed into making a larger version in the form of a panel plane.  Because of the enormity of work on this plane I have decided to make only 8 for this batch.

 For the benefit of those who have bought this plane I would like to blog the making.  Hopefully it will show up some areas I did not cover on the smoothing plane blog.

 You will notice that I do change my techniques from time to time.

 I will start this blog by documenting the work on the lever cap.  I would like to emphasise the work that goes into this one component.  Though I have used castings in the past for my lever caps I feel more in control by making them from a solid bar and I produce a far better product.  I  now understand why some of the Rolls Royce cameras bodies are made from solid billets.

Starting with a bar of naval brass I go round and machine all the sides true, just like you would with a piece of wood.

If this was a piece of wood the next stage would be to machine a form i.e. either with a spindle or a router.  In the case of metals I have to concentrate more on work holding so this picture shows me setting up three vices in a line.  The bars I am working are 18 inches long and cut 8 lever caps each.
(more…)
