Window to my Workshop 27

Spiers Style Shoulder plane - 3


I seem to have misplaced a few pictures along the way here but the blog is only intended as a glimpse of what goes on.


28 Spiers style shoulder plane

At this stage with the plane temporarily assembled I drill through the horn and the bridge with a pilot drill.


29 Spiers style shoulder plane

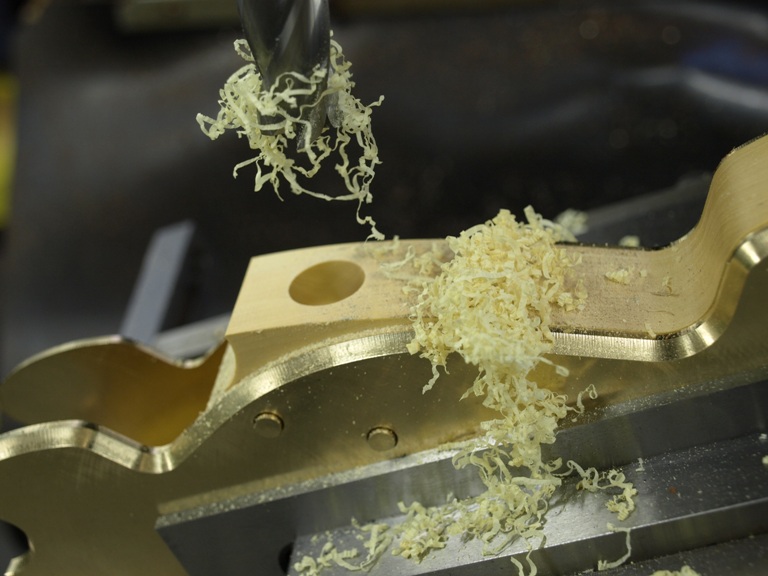

After the pilot hole is made then I bore a clearance hole and stop before the bridge.  Then I put a counter bore in for the retention of the front end of the infill.


30 Spiers style shoulder plane


31 Spiers style shoulder plane

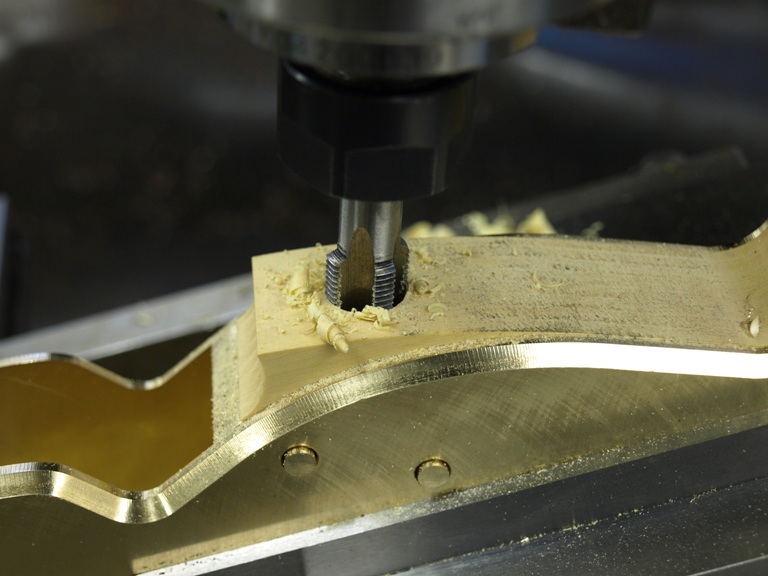

With all the boring done then the thread can be cut through the bridge.


32 Spiers style shoulder plane

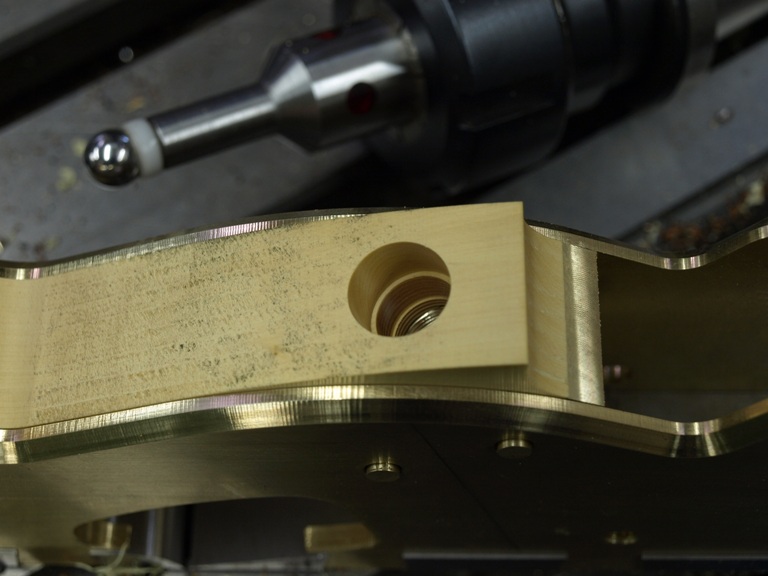

This picture shows the bore and thread.


34 Spiers style shoulder plane

There is a lot of work not shown now – the shaping of the horn in the front infill, polishing of the edges and chamfers, including the polishing and flushing of the bridge and blending in with the horn.  This is the most critical part of the job and all the pictures are missing.

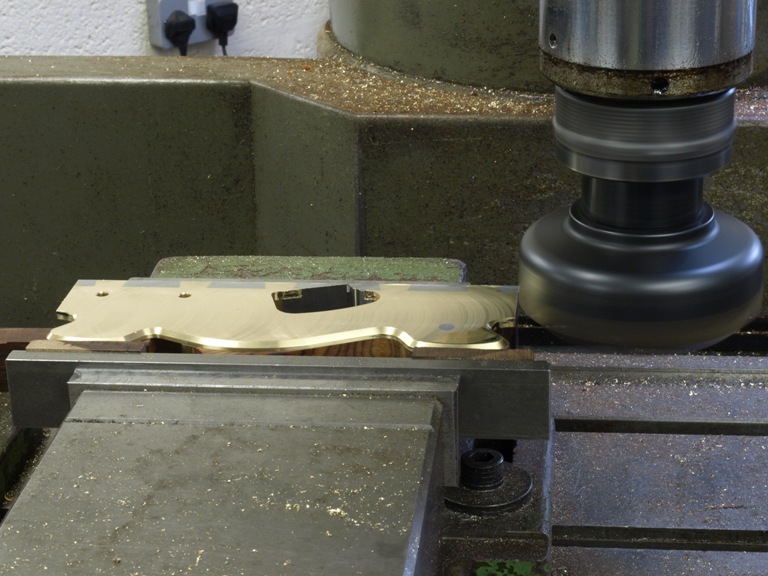

 After final assembly; the picture shows the flushing of all the peining and dovetails to the sides.


35 Spiers style shoulder plane

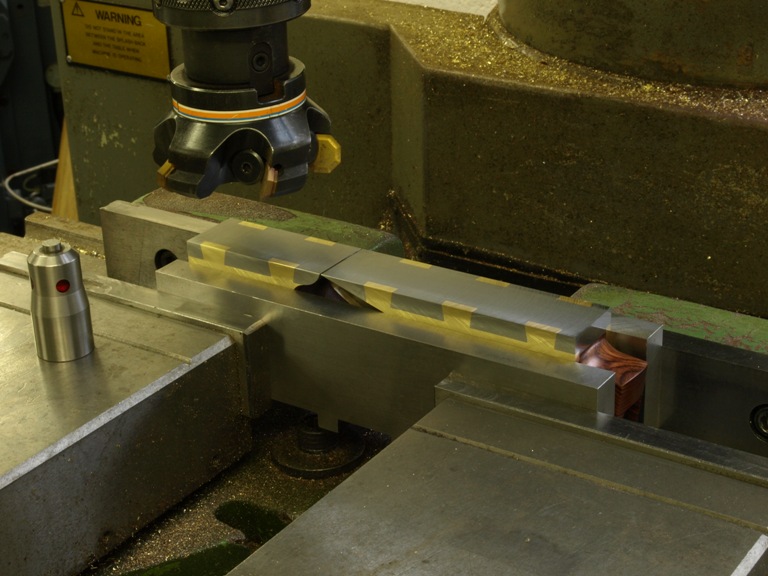

 Dovetails being flushed from the bottom.


39 Spiers style shoulder plane

The drilling through the rivet and sleeve via the adjuster recess prior to tapping for retaining the adjuster.
